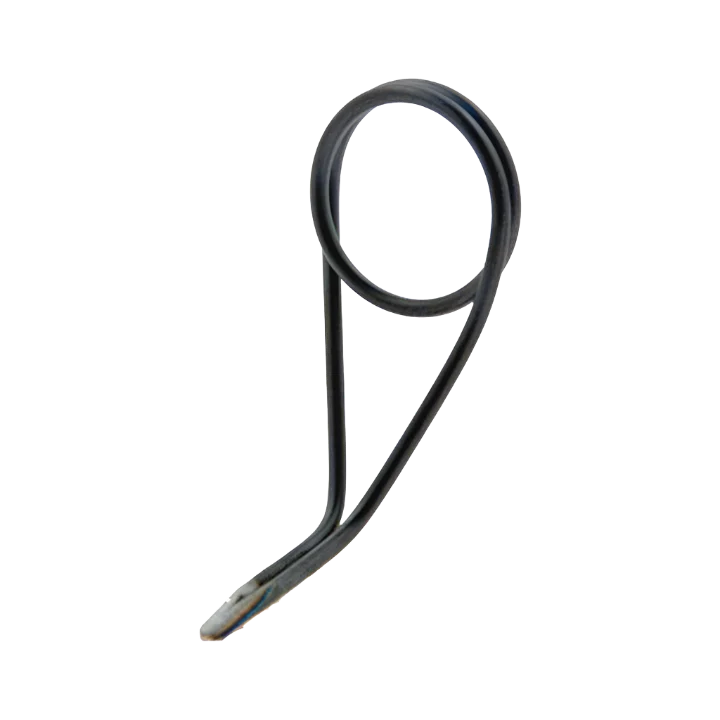

RECOIL Single Foot Spinning Guides feature a nickel titanium alloy frame with shape-memory properties that flex back to their original shape after repeated impacts. The Black Pearl PVD finish is applied using a flexible vacuum coating process that increases surface micro-hardness while adding a sleek, decorative appearance. Corrosion-proof and ultra-lightweight, these guides are ideal for high-performance spinning rod builds.

Key Features:

• Nickel titanium alloy construction with shape-memory design
• Black Pearl PVD finish for durability and style
• Corrosion-proof for use in any environment
• Lightweight for improved rod sensitivity
• Designed for spinning rods

Specifications

SKU	Size	Wire Guage (Inches)	Loop Dia. I.D. (Inches)	Loop Dia. O.D. (Inches)	Height from CL of Loop off Blank	Height from Top of Loop off Blank	Pitch (Inches) - Start to End of Loop	Overall Length	Leg Length	Foot Preparation
RSPG	6	0.022	0.158	0.2	0.18	0.28	N/A	N/A	0.32	Swage
RSPG	7	0.026	0.187	0.24	0.19	0.31	N/A	N/A	0.35	Swage
RSPG	8L	0.03	0.21	0.27	0.28	0.42	N/A	N/A	0.38	Swage
RSPG	8	0.03	0.21	0.27	0.38	0.51	N/A	N/A	0.38	Swage
RSPG	10	0.037	0.28	0.35	0.5	0.68	N/A	N/A	0.42	Swage
RSPG	12	0.037	0.343	0.42	0.63	0.83	N/A	N/A	0.5	Swage
RSPG	16	0.045	0.413	0.5	0.75	1	N/A	N/A	0.6	Grind
RSPG	20	0.055	0.548	0.66	0.88	1.19	N/A	N/A	0.7	Grind
RSPG	25	0.06	0.724	0.84	1	1.42	N/A	N/A	0.8	Grind
RSPG	30	0.06	0.905	1.03	1.25	1.76	N/A	N/A	0.9	Grind
RSPG	40	0.07	1.18	1.32	1.5	2.16	N/A	N/A	1.12	Grind
